Box and Whisker Plot Report
The

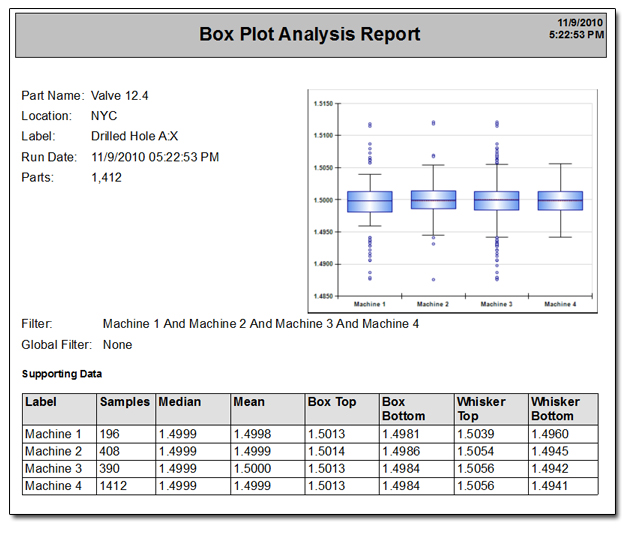

Box Plot allows you to compare a feature across multiple filters to view the distribution of the data. In the example on the right, we have pulled up a quick box plot comparing a hole's X position across four different machines that presumably drilled the hole. Both the whiskers and outliers are shown in this chart and clicking on the boxes themselves will allow you to drill down into the parts that make up each box.
As would be expected in a typical box plot, the outline of the box indicates the middle 50% of the data. The line inside the box represents the median of the data. The whiskers represent the smaller of either 1.5x the height of the box or the highest and lowest values. The outliers represent outliers beyond the limits.
|
|
