The default First Article – Multiple Parts reports that come with QC-CALC only show 5 parts. This White Paper will give step-by-step instructions for designing a custom template and adding a 6th part column to one of the standard First Article – Multiple Parts templates.
The Report Designer
The directions shown here will walk you through adding a column for Part 6 in the report and shrinking the remaining columns to make enough room on the page for an additional column. This is a lengthy process, but relatively simple to accomplish.

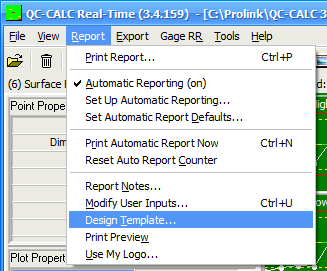

- From QC-CALC Real-Time choose the Report – Design Template menu.
![](temp images/185~178b9777-186d-436d-9a6b-e66e6ee8ce01~doc1_image0.png)
- Choose the FiveLand.FPF template from the list of files that appears and click Open.

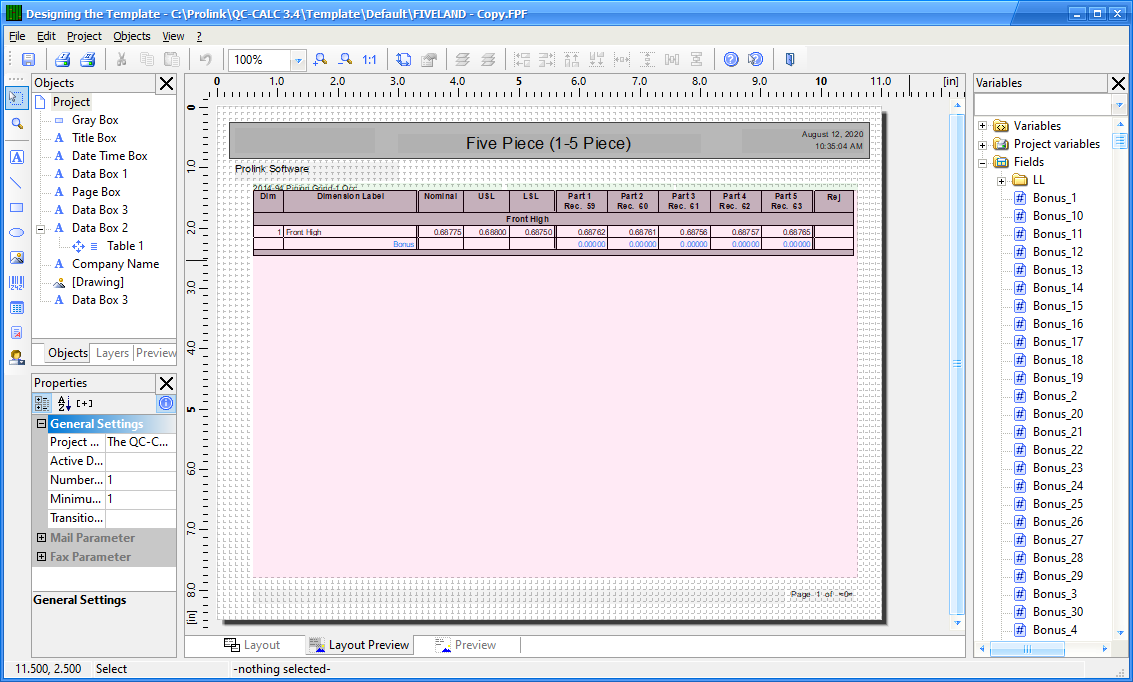

- The Report Designer now appears on the screen.
![](temp images/185~4541f544-964d-4eb4-b458-6422060c57e7~doc1_image1.png)
Making more Space
- Double-click on the table, and the Table Contents window will appear.

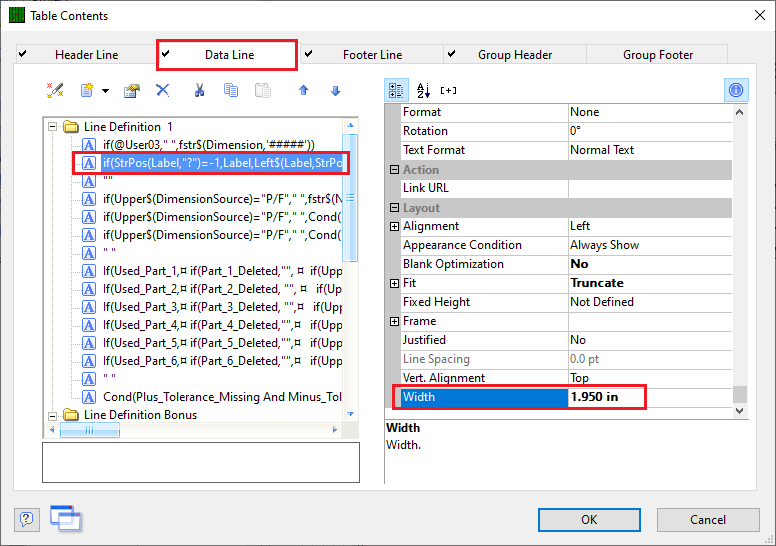

- Choose the Data Line tab, then click the “Label” line in the Line area. On the right side of the screen, change the Width to “1.95.”
![](temp images/185~58592f6f-5adc-43f6-b4b2-35371f78b88d~doc1_image2.png)

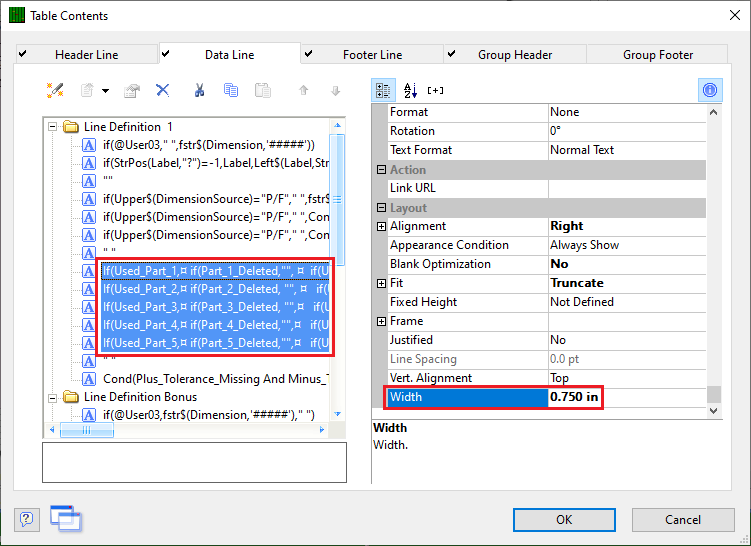

- Next, use the Ctrl key to click and highlight the “if(Used_Part_1…” through “if(Used_Part_5…” in the Line area and set the Width for all 5 lines to “0.75.”
![](temp images/185~74d48a84-e728-42d1-b368-7794965e55c5~doc1_image3.png)
- Now that we have made room in the Data area for the additional column, we need to do the same thing in the Header area.

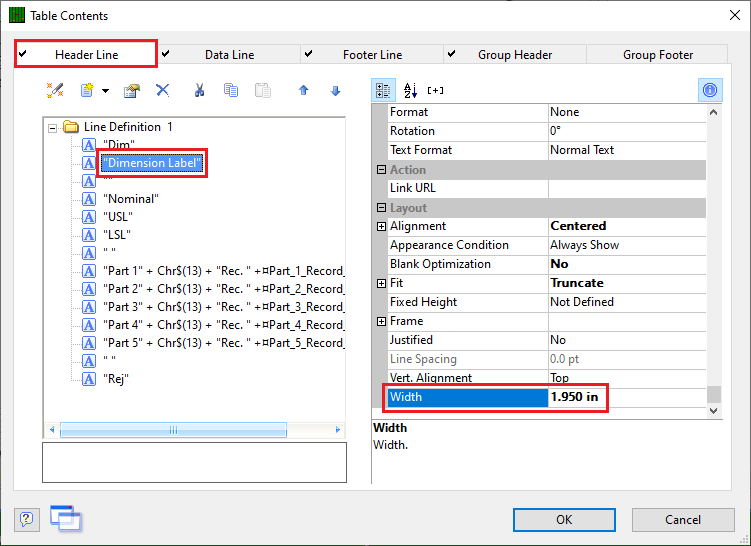

- Choose the Header Line tab then click on the “Dimension Label” line in the Line area. On the right side of the screen, change the Width to “1.95.”
![](temp images/185~39399cc3-5dcb-462a-a24b-ef4b5d0e7912~doc1_image4.png)

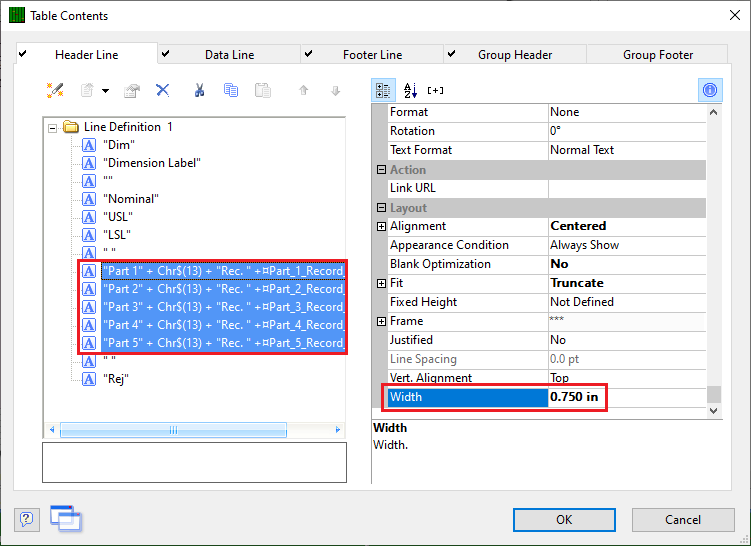

- Next, use the Ctrl key to click and highlight the “Part 1” + Chr$(13)… through “Part 5” + Chr$(13)… in the Line area and set the Width for all 5 lines to “0.75.”
![](temp images/185~72158863-0bcc-499a-8533-8fb70b8de0de~doc1_image5.png)
- Click the OK button, to save these changes.
Adding a Column for Part 6
- Double-click on the table and the Table Contents window will appear again.

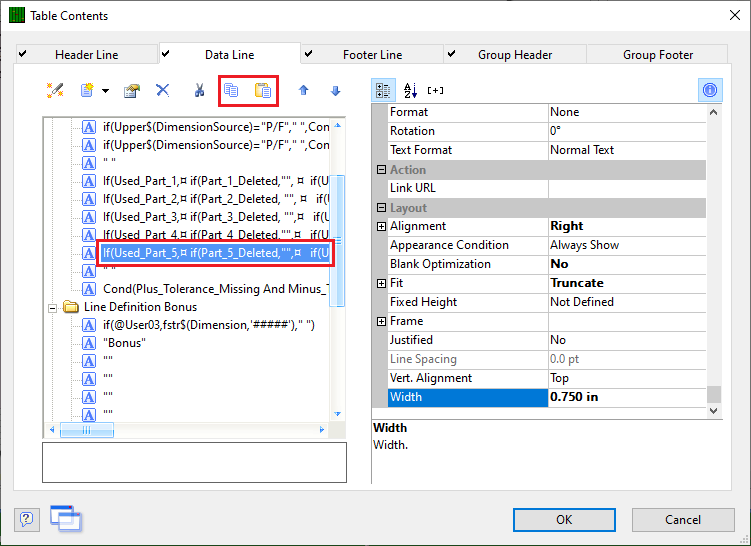

- Choose the Data Line tab, highlight the “if(Used_Part_5…” line, then click the Copy line to Clipboard button followed by the Insert line(s) from Clipboard button. This was done so that you can easily get the same exact information in the Part 6 column without typing in all of these commands.
![](temp images/185~e3646a33-670e-421c-997b-94821e046ad7~doc1_image6.png)
- There are now 2 “if(Used_Part_5…” lines showing in the Table Contents window. Click on the bottom instance of that line and click the Edit line button.
![](temp images/185~1bf91f63-5bb3-4599-8baa-e4de10d8f3bb~doc1_image7.png)

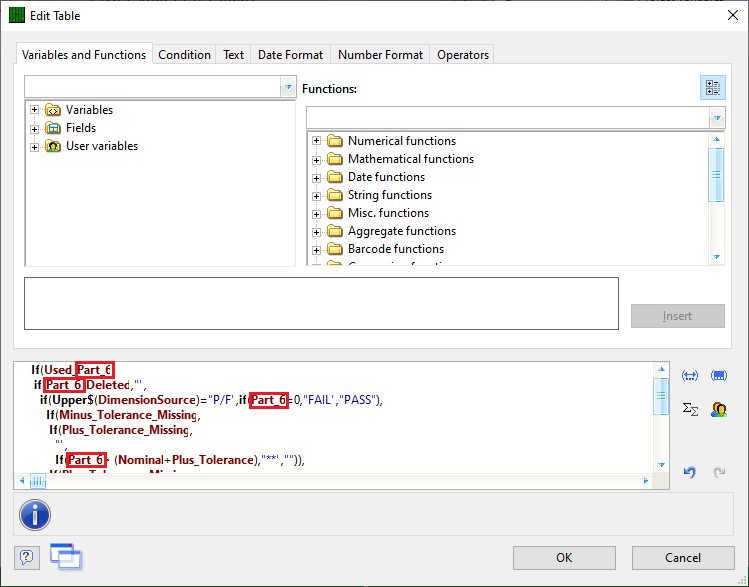

- Now go through the entire block of commands in the bottom section of the Edit Table window, change all instances of “Part_5” to “Part_6”, and click OK.
![](temp images/185~8c96a541-9888-45f5-a725-46f16ea98f5e~doc1_image8.png)
New Column Header
- In the Table Contents window, choose the Header Line tab.

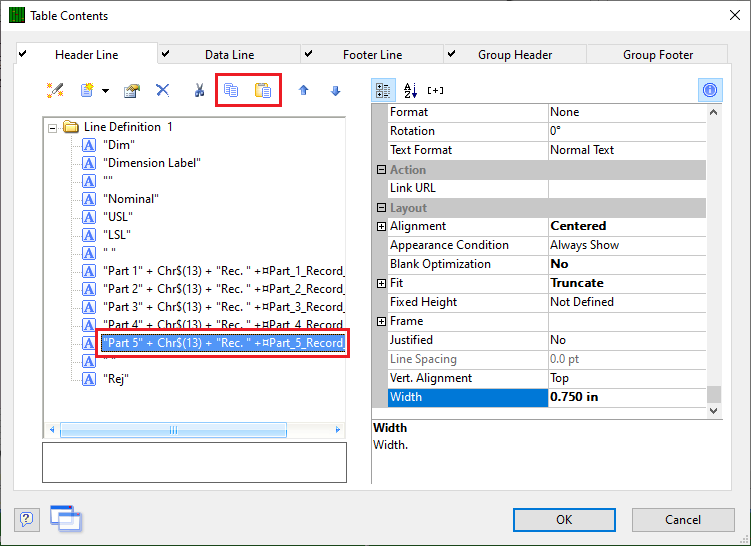

- Highlight the “Part 5…” line, then click the Copy line to Clipboard button followed by the Insert line(s) from Clipboard button.
![](temp images/185~fafd40f7-165d-48ed-8877-4cdb42110859~doc1_image9.png)

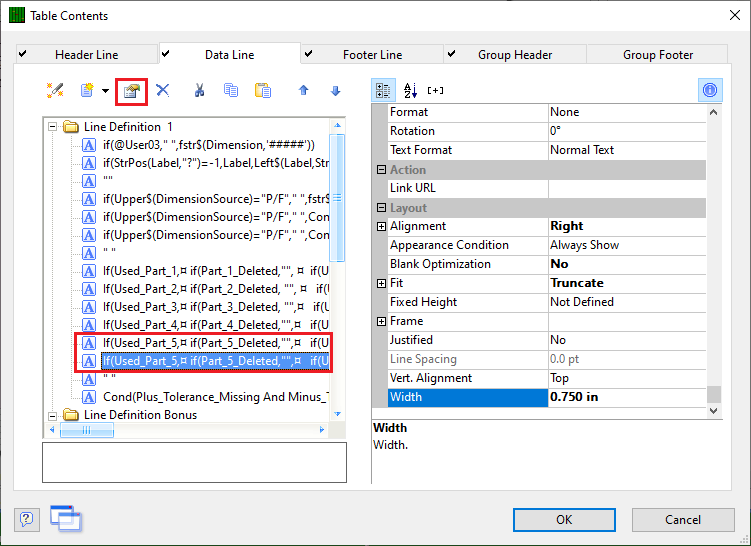

- There are now 2 “Part 5…” lines showing in the Table Contents window. Click on the bottom instance of that line and click the Edit line button.
![](temp images/185~cac8b21b-6ebf-4956-aa95-434b473012a4~doc1_image10.png)

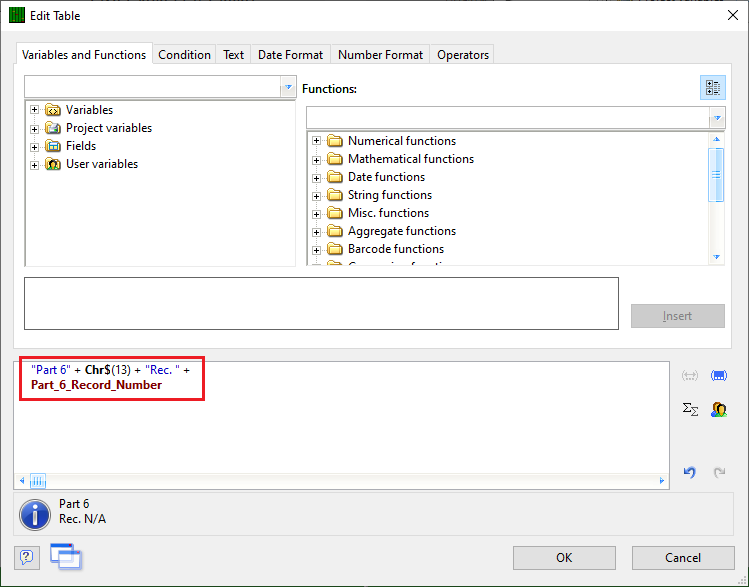

- Now go through the entire block of commands in the bottom section of the Edit Table window, change all instances of “Part_5” to “Part_6”, and click OK.
![](temp images/185~22611293-2e16-4749-b346-79b6f63dcf1b~doc1_image11.png)
Final Steps
- Click OK on the Table Contents screen and save your changes (File – Save).

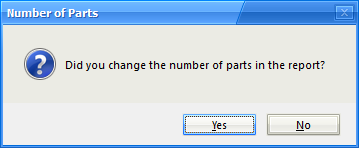

- Exit from the Report Designer. You will see a question asking if you changed the number of parts in your report. Choose Yes on this message.
![](temp images/185~749890c8-191c-44d8-83e2-e0a4f8768477~doc1_image12.png)

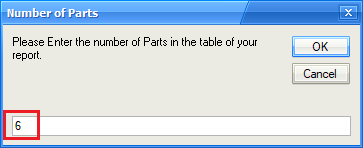

- The next window will ask for the total number of parts this report represents. Answer this question with “6” so that your report will run correctly in the future.
![](temp images/185~ef7eedee-4811-4788-958d-87a9f02c5cf0~doc1_image13.png)
- Now run your report and you should have a 6th column of parts.
