Reaction Plan Viewer

Reaction Plan Viewer - What the Shop Sees

The Viewer displays real-time analysis results in a slideshow format. The operator sees only the needed results. When a different data set is sent to the Viewer, the Reaction Plan associated with the data automatically loads and performs the calculations.

Automatic Export from QC-CALC Real-Time Software

Automatic exporting from QC-CALC allows you to statistically monitor a process and automatically trigger a reaction plan. The plan then recommends machine adjustments based on statistical indicators from the process stream.

Remote Execution

The Viewer is portable allowing you to measure parts in the CMM room and display the Reaction Plan on another computer where the parts are machined.

Operator Notes

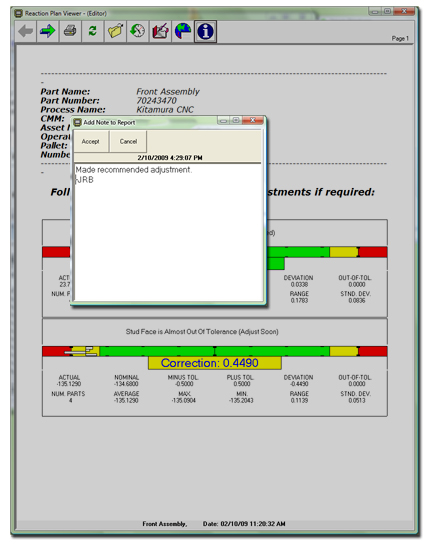

Your machine operators can optionally enter notes (shown at right) when a reaction is needed providing a running history of problems and solutions.

Automatic Document Saving

Every processed Reaction Plan is saved in folders organized by name and date. Great for tracking machine adjustments!


Reaction Plan documents can be exported to a word processor or drawing application for easy sharing.
